EIC Event Generator Kinematics - 10×100 GeV
Analysis of generated events for electron-proton collisions at 10 GeV × 100 GeV beam energy configuration. Generated with the Sullivan process for K+Λ production.

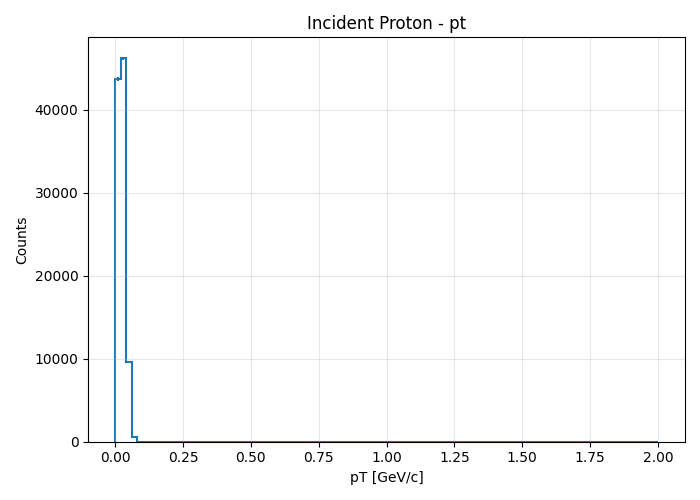

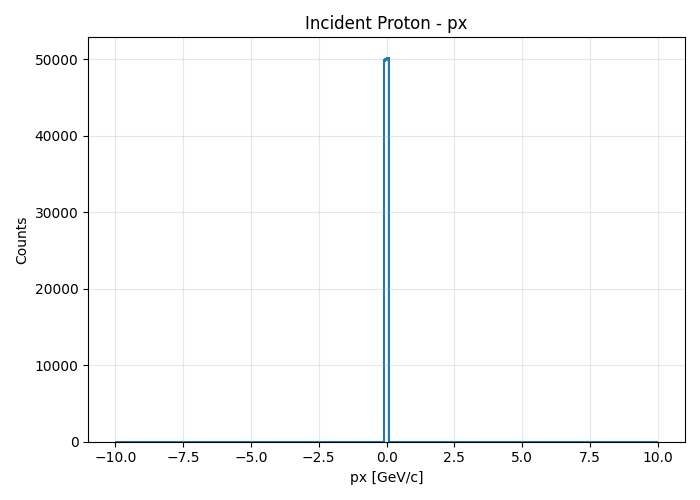

Incident Proton
The incident proton beam particles
| px | py | pz |
|---|---|---|
 |  |  |

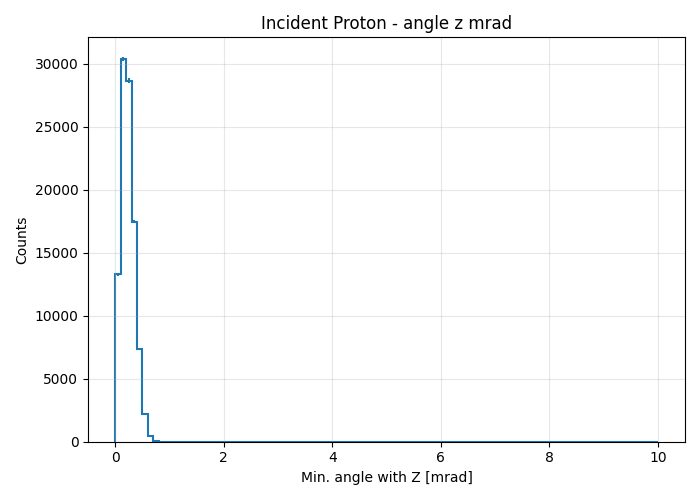

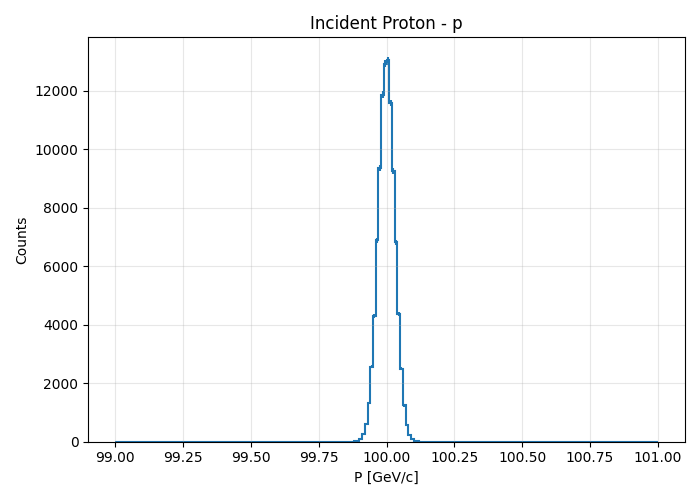

| pT | p | angular |
|---|---|---|
 |  |  |

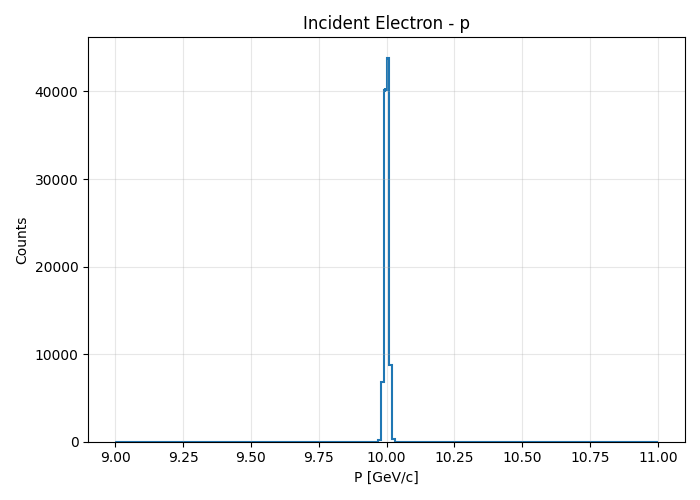

Incident Electron
The incident electron beam with nominal energy of 10 GeV (traveling in -z direction).
Momentum Components

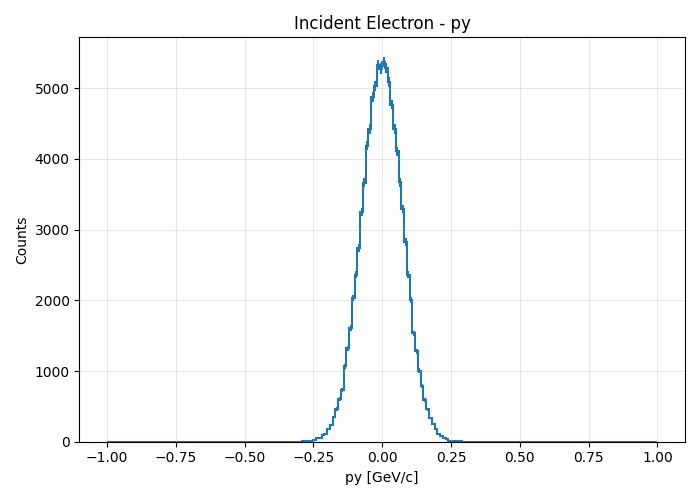

| px | py |
|---|---|
 |  |

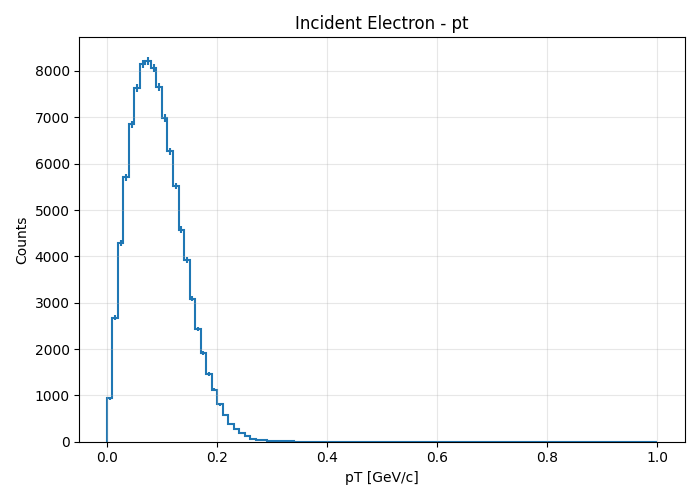

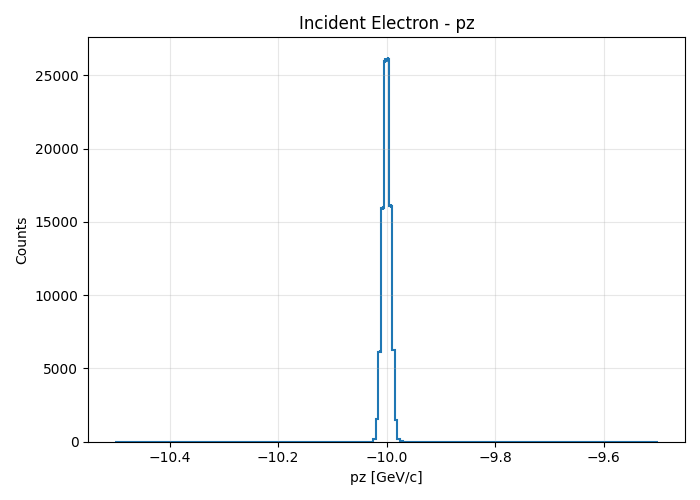

| pT | pz | p |
|---|---|---|
 |  |  |
Angular Distribution

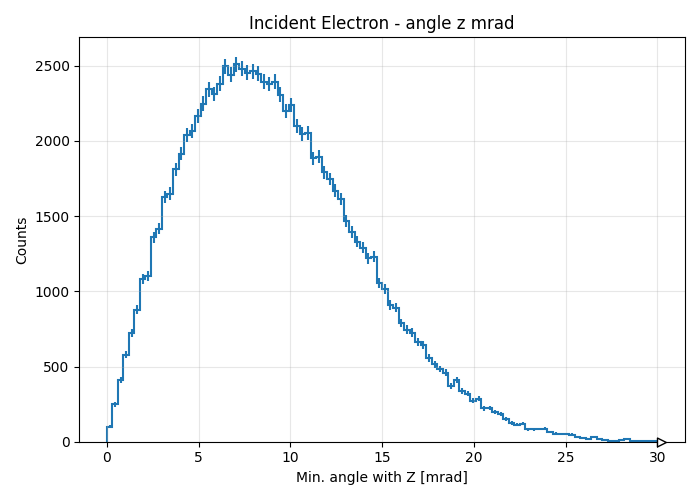

| Minimal angle with Z-axis |
|---|
 |

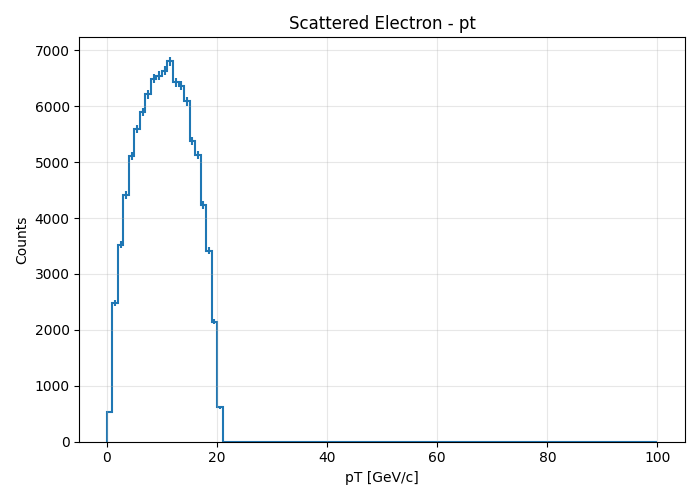

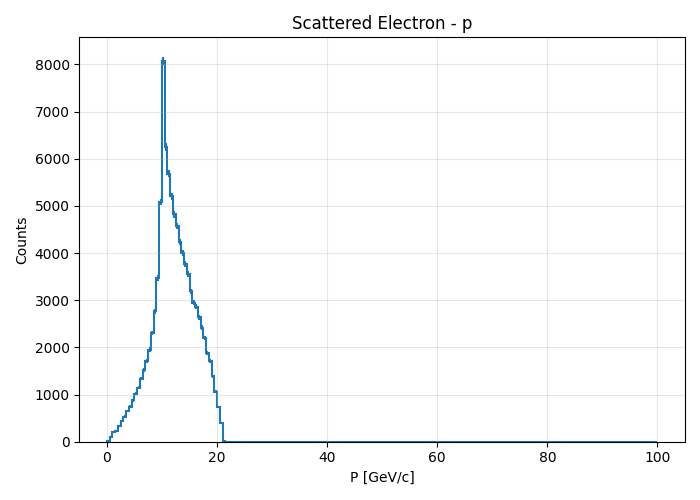

Scattered Electron
The electron after DIS interaction.
Momentum Distributions
| pT | pz | p |
|---|---|---|
 |  |  |
Angular Distributions

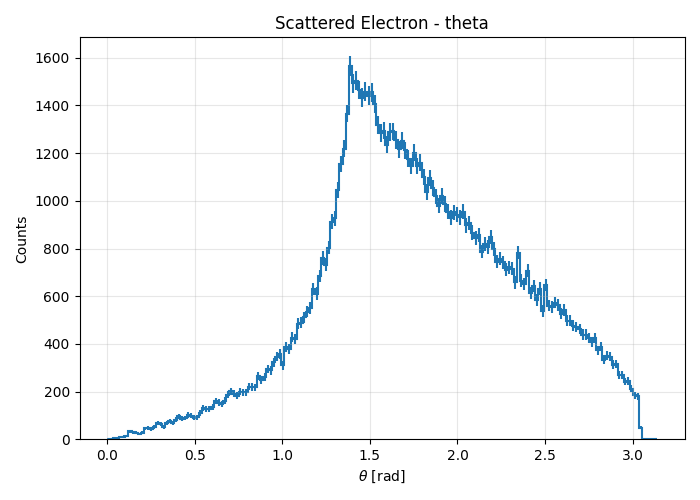

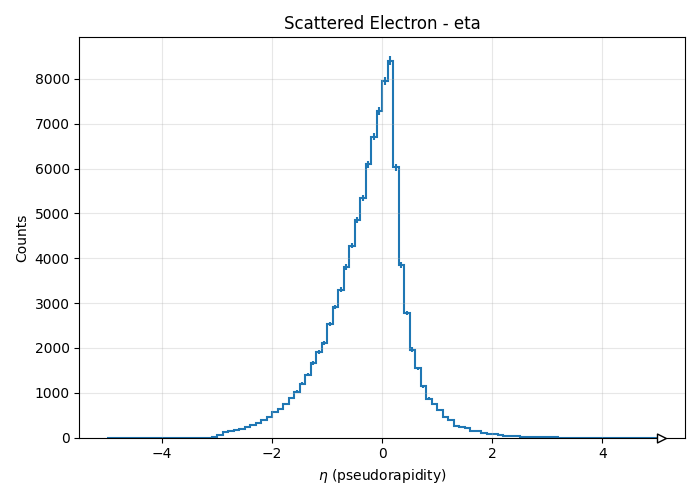

| θ (polar angle) | η (pseudorapidity) |
|---|---|
 |  |

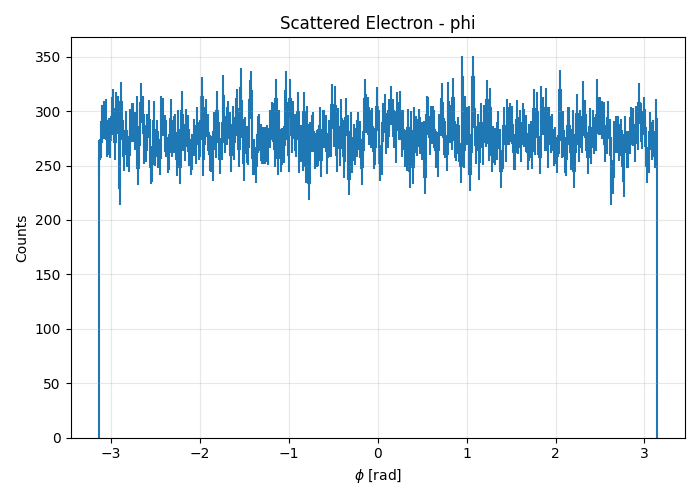

| φ (azimuthal angle) |
|---|
 |

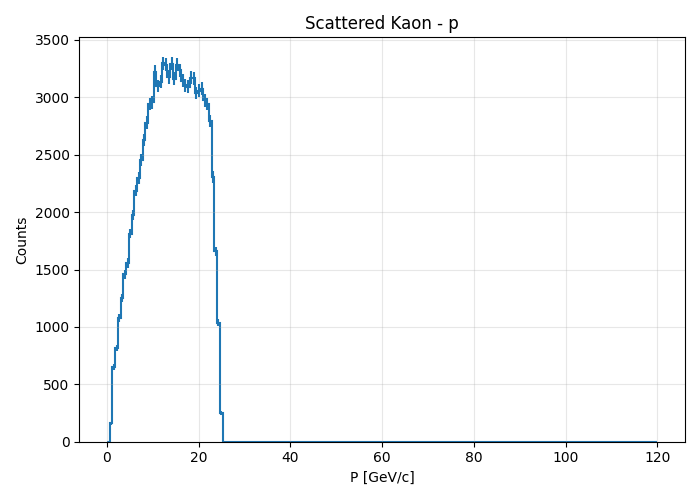

Scattered Kaon
The produced K⁺ meson from the Sullivan process.
Momentum Distributions

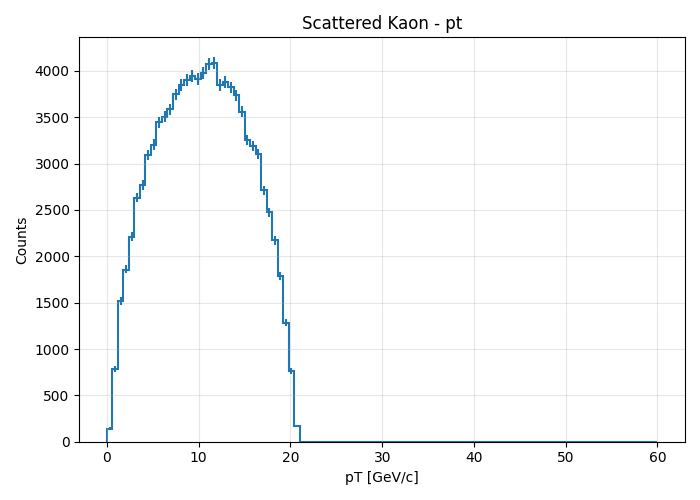

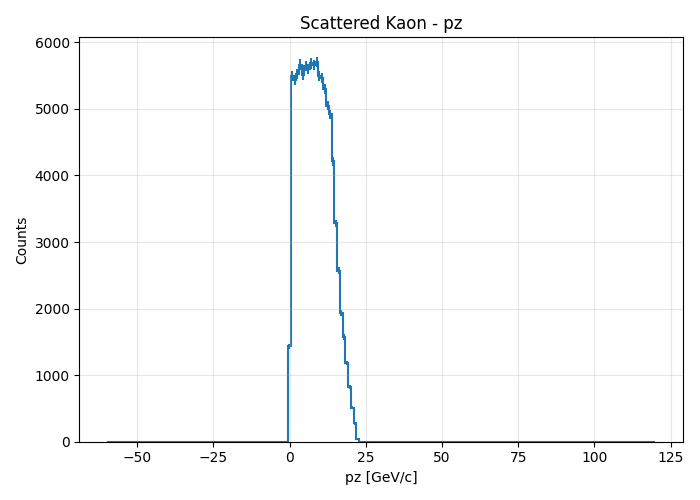

| pT | pz | p |
|---|---|---|
 |  |  |
Angular Distributions

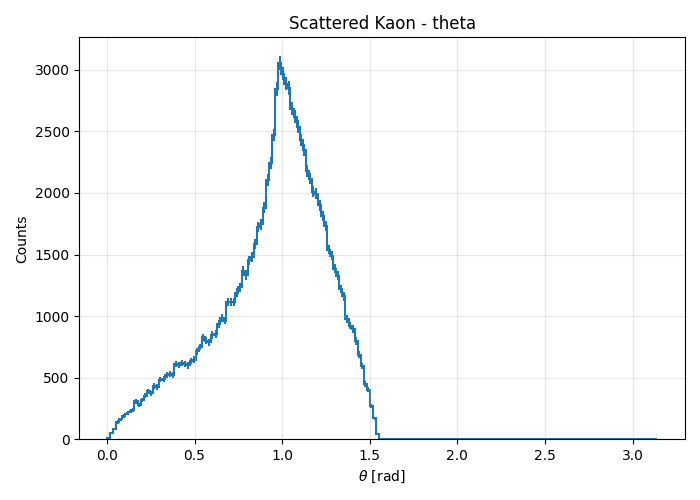

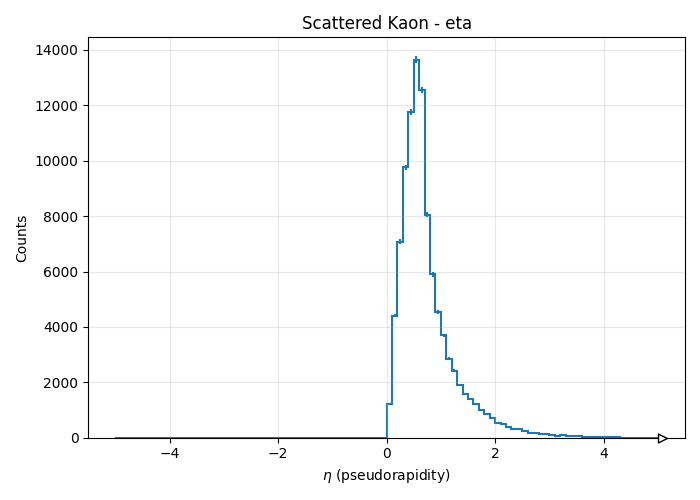

| θ (polar angle) | η (pseudorapidity) |
|---|---|
 |  |

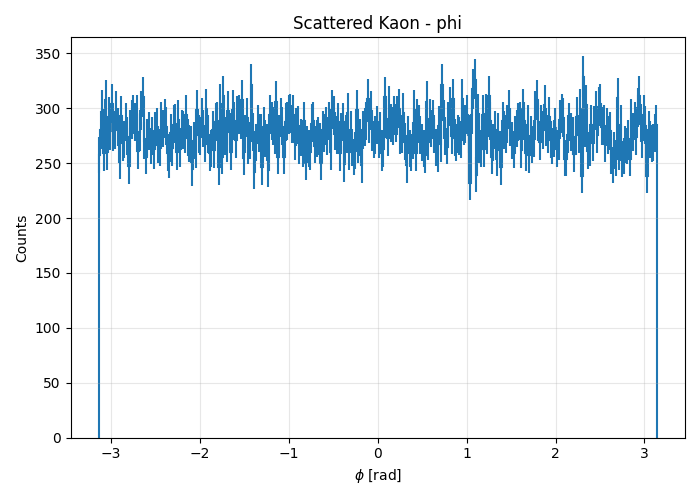

| φ (azimuthal angle) |
|---|
 |
Spectator Lambda
The Λ baryon acting as the spectator in the Sullivan process, carrying most of the initial proton momentum.
Momentum Components

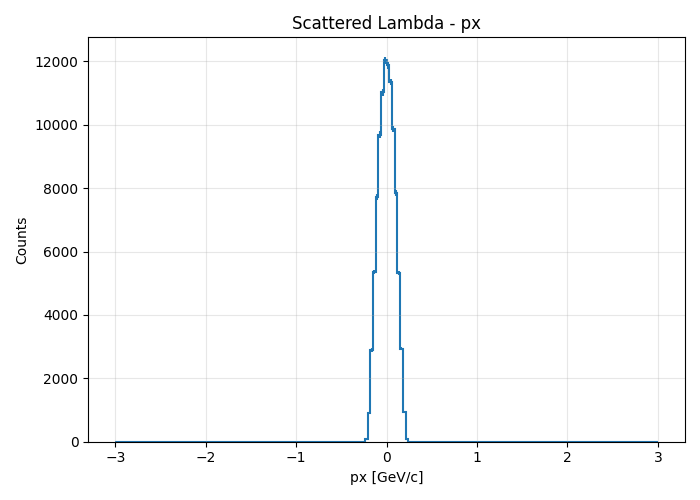

| px | py |
|---|---|
 |  |

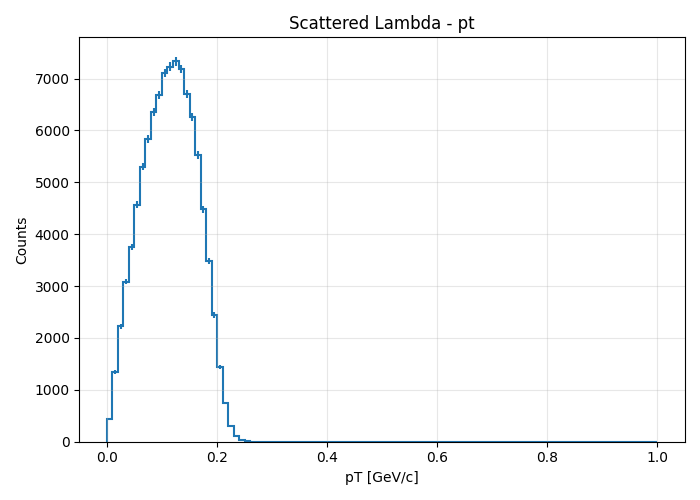

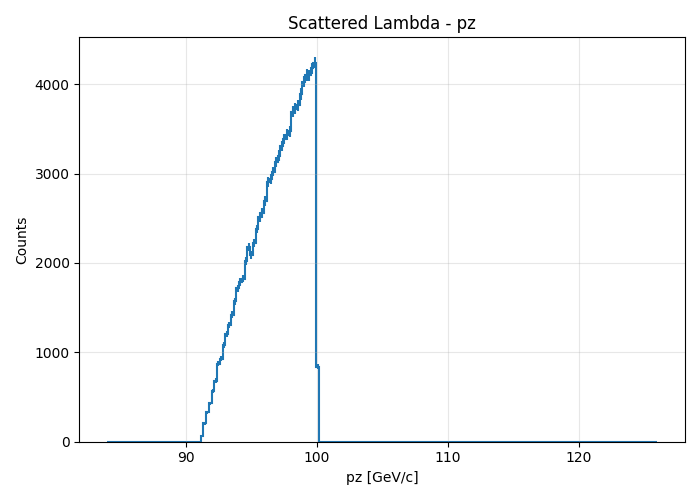

| pT | pz | p |
|---|---|---|
 |  |  |
Angular Distribution

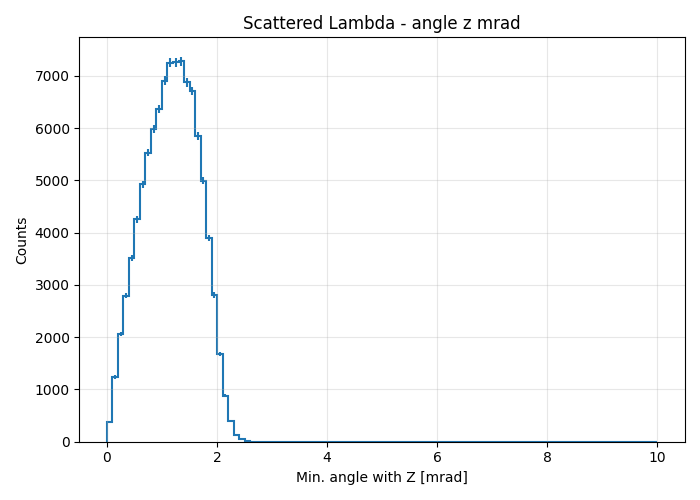

| Minimal angle with Z-axis |
|---|
 |
Summary
This analysis shows the kinematic distributions for the Sullivan process e + p → e' + K⁺ + Λ at 10×100 GeV:
- Incident particles: Show narrow momentum distributions centered around beam energies
- Scattered electron: Exhibits broad kinematic range typical of DIS
- Kaon: Produced meson with significant transverse momentum
- Lambda: Spectator baryon carrying most of the initial proton momentum (~95-100 GeV)
The distributions confirm the expected kinematics for meson structure studies at the EIC.
