#include <Validator.h>

Detailed Description

Base class for all algorithm validators to inherit from.

Similar to iguana::Algorithm, derived classes should override the methods Validator::Start, Validator::Run and Validator::Stop

Definition at line 21 of file Validator.h.

Public Member Functions
	Validator (std::string_view name="validator")
std::optional< std::string >	GetOutputDirectory ()
bool	Run (hipo::banklist &banks) const override
	Run Function: Process an event's hipo::banklist
void	SetOutputDirectory (std::string_view output_dir)
void	Start (hipo::banklist &banks) override
	Initialize this algorithm before any events are processed, with the intent to process banks.
void	Stop () override
	Finalize this algorithm after all events are processed.
Public Member Functions inherited from iguana::Algorithm
	Algorithm (std::string_view name)
hipo::banklist::size_type	GetBankIndex (hipo::banklist &banks, std::string const &bank_name) const noexcept(false)
std::unique_ptr< YAMLReader > const &	GetConfig () const
hipo::bank	GetCreatedBank (std::string const &bank_name="") const noexcept(false)
hipo::banklist::size_type	GetCreatedBankIndex (hipo::banklist &banks) const noexcept(false)
std::string	GetCreatedBankName () const noexcept(false)
std::vector< std::string >	GetCreatedBankNames () const noexcept(false)
hipo::schema	GetCreatedBankSchema (std::string const &bank_name="") const noexcept(false)
unsigned int	GetCreatedBankVariant () const
template<typename OPTION_TYPE>
OPTION_TYPE	GetOptionScalar (std::string const &key, YAMLReader::node_path_t node_path={}) const
template<typename OPTION_TYPE>
std::set< OPTION_TYPE >	GetOptionSet (std::string const &key, YAMLReader::node_path_t node_path={}) const
template<typename OPTION_TYPE>
std::vector< OPTION_TYPE >	GetOptionVector (std::string const &key, YAMLReader::node_path_t node_path={}) const
std::unique_ptr< RCDBReader > &	GetRCDBReader ()
void	SetConfig (std::unique_ptr< YAMLReader > &&yaml_config)
void	SetConfigDirectory (std::string const &name)
void	SetConfigFile (std::string const &name)
void	SetName (std::string_view name)
template<typename OPTION_TYPE>
OPTION_TYPE	SetOption (std::string const &key, const OPTION_TYPE val)
void	Start ()
	Initialize this algorithm before any events are processed, with the intent to process bank rows rather than full banks;.
Public Member Functions inherited from iguana::Object
	Object (std::string_view name="", Logger::Level lev=Logger::DEFAULT_LEVEL)
std::unique_ptr< Logger > &	GetLog ()
std::string	GetName () const
std::unique_ptr< Logger > &	Log ()
void	SetLogLevel (Logger::Level const lev)
void	SetLogLevel (std::string_view lev)
void	SetName (std::string_view name)

Protected Attributes
std::unique_ptr< AlgorithmSequence >	m_algo_seq
	An iguana::AlgorithmSequence to be used for this validator.
std::mutex	m_mutex
	Mutex for locking procedures such as histogram filling in Validator::Run.
Protected Attributes inherited from iguana::Algorithm
std::string	m_class_name
	Class name of this algorithm.
unsigned int	m_created_bank_variant {0}
std::string	m_default_config_file
	Default configuration file name.
std::mutex	m_mutex
	A mutex for this algorithm.
std::unique_ptr< RCDBReader >	m_rcdb
	RCDB reader.
bool	m_rows_only
	If true, algorithm can only operate on bank rows; Algorithm::GetBank, and therefore Algorithm::Run, cannot be called.
std::string	o_user_config_dir
std::string	o_user_config_file
Protected Attributes inherited from iguana::Object
std::unique_ptr< Logger >	m_log
	Logger instance for this object
std::string	m_name
	The name of this object.

Additional Inherited Members
Protected Member Functions inherited from iguana::Algorithm
hipo::schema	CreateBank (hipo::banklist &banks, hipo::banklist::size_type &bank_idx, std::string const &bank_name) noexcept(false)
hipo::bank &	GetBank (hipo::banklist &banks, hipo::banklist::size_type const idx, std::string const &expected_bank_name="") const noexcept(false)
template<typename OPTION_TYPE>
std::optional< OPTION_TYPE >	GetCachedOption (std::string const &key) const
void	ParseYAMLConfig ()
	Parse YAML configuration files. Sets m_yaml_config.
void	ShowBank (hipo::bank const &bank, std::string_view message="", Logger::Level const level=Logger::trace) const
void	ShowBanks (hipo::banklist const &banks, std::string_view message="", Logger::Level const level=Logger::trace) const
void	StartRCDBReader ()
	Instantiate the RCDBReader instance for this algorithm.
void	ThrowSinceRenamed (std::string const &new_name, std::string const &version) const noexcept(false)

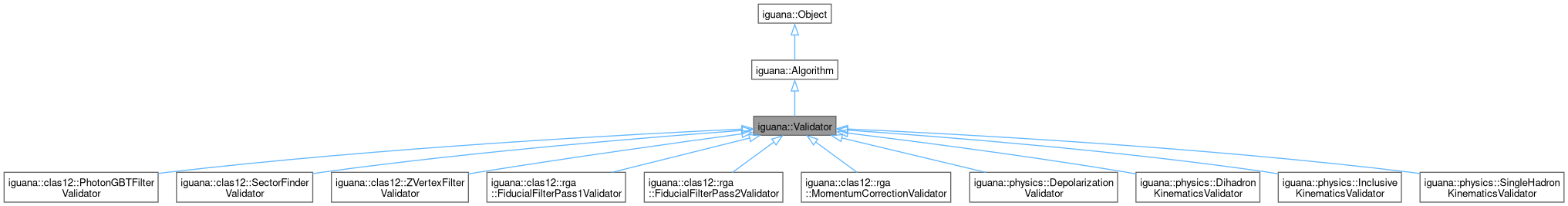

Inheritance diagram for iguana::Validator:

Constructor & Destructor Documentation

◆ Validator()

iguana::Validator::Validator ( std::string_view name = "validator" )

inline

Parameters

name	the unique name for a derived class instance

Definition at line 27 of file Validator.h.

◆ ~Validator()

virtual iguana::Validator::~Validator ( )

inlinevirtual

Definition at line 37 of file Validator.h.

Member Function Documentation

◆ GetOutputDirectory()

std::optional< std::string > iguana::Validator::GetOutputDirectory ( )

Get this validator's output directory

Returns: an optional, which is set if the output directory is defined

◆ Run()

bool iguana::Validator::Run ( hipo::banklist & banks ) const

inlineoverridevirtual

Run Function: Process an event's hipo::banklist

Parameters

banks the list of banks to process

Returns: a boolean value, which is typically used to decide whether or not to continue analyzing an event, i.e., it can be used as an event-level filter; not all algorithms use or need this feature; see the algorithm's more specialized Run functions, which have hipo::bank parameters

See also: Specialized Run function(s) above/below; they take individual hipo::bank objects as parameters, and their documentation explains which banks are used by this algorithm and how.

Implements iguana::Algorithm.

Reimplemented in iguana::clas12::ZVertexFilterValidator.

Definition at line 40 of file Validator.h.

◆ SetOutputDirectory()

void iguana::Validator::SetOutputDirectory ( std::string_view output_dir )

Set this validator's output directory

Parameters

output_dir the output directory

◆ Start()

void iguana::Validator::Start ( hipo::banklist & banks )

inlineoverridevirtual

Initialize this algorithm before any events are processed, with the intent to process banks.

use this method if you intend to use Algorithm::Run.

Parameters

banks the list of banks this algorithm will use, so that Algorithm::Run can cache the indices of the banks that it needs

Implements iguana::Algorithm.

Reimplemented in iguana::clas12::ZVertexFilterValidator.

Definition at line 39 of file Validator.h.

◆ Stop()

void iguana::Validator::Stop ( )

inlineoverridevirtual

Finalize this algorithm after all events are processed.

Implements iguana::Algorithm.

Reimplemented in iguana::clas12::ZVertexFilterValidator.

Definition at line 41 of file Validator.h.

Member Data Documentation

◆ m_algo_seq

std::unique_ptr<AlgorithmSequence> iguana::Validator::m_algo_seq

protected

An iguana::AlgorithmSequence to be used for this validator.

Definition at line 54 of file Validator.h.

◆ m_mutex

std::mutex iguana::Validator::m_mutex

mutableprotected

Mutex for locking procedures such as histogram filling in Validator::Run.

Definition at line 57 of file Validator.h.

The documentation for this class was generated from the following file:

/__w/iguana/iguana/iguana_src/src/iguana/algorithms/Validator.h
